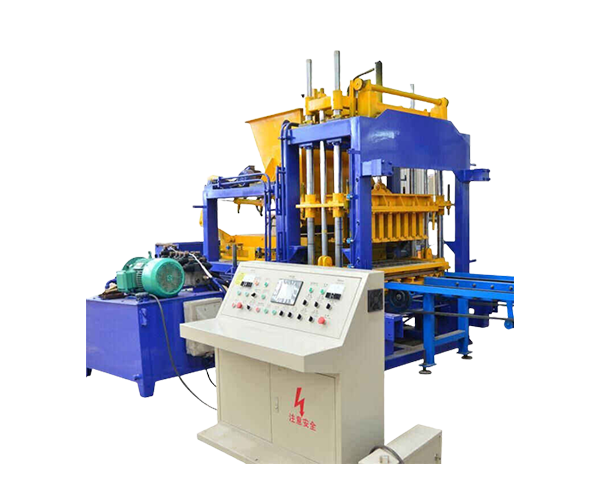

QT4-15 Block Machine
QT4-15 Block making machine is the most popular automatic and cost-effetive block machine. It is very fit for small and medium block factories. The block machine consists of excellent hydraulic system, improved patented super strong vibration system and excellent recycle material feeding system. With the block machines, the customized moulds and auxiliary machines, variouse blocks can be produced.
QT4-15
1. Raw Material: Q235B,Q345B,ZG350-500H,20CrMnTi Adopted for Excellent Quality
2. Processing: Laser Cutting, Sawing, Milling Drilling Technology for Block Machine
3. Moulds: Customized Moulds Available as per Specific Requests
4. Electric Parts: Siemens, Omron, Schneider are Available
5. Motor: ABB Motor for You
3. Moulds: Customized Moulds Available as per Specific Requests
4. Electric Parts: Siemens, Omron, Schneider are Available
5. Motor: ABB Motor for You
QT4-15 Block Machine Technical Parameter
Main Specifications
| Overall Size | 8300mm*2800mm*2900mm |
|---|---|
| Host Machine Size(mm) | 2700 × 1600 × 2500 |
| Vibration Force (KN) | 30-50 |
| Vibration Frequency (Time/Minutes) | 2800-4500 |
| Host Machine Power | 24 KW |
| Total Project Power | 40 KW |
| Host Machine Weight | 4.5T |
| Pallet Size (mm) | 810 × 610 × 25 |
| Machine Shed Area | 2400 sft |
| Land Area (Aprox) | 66 Desimal |
Production Capacity
Sl. No. | Block Name | Dimension(L×W×H)mm | Block Making Period | Block Produced Per Mold(Block) | Product Capacity(block/hour) | Production Capacity(Block/8hours) |
|---|---|---|---|---|---|---|
1 | Hollow Block | 400 × 200 × 200 | 15s-20s
| 4
| 960-720 | 7680-5760 |
2 | Hollow Block | 400 × 200 × 115 | 15s-20s
| 6
| 1440-1080 | 11520-8640 |
3 | Hollow Block | 390 × 190 × 100 | 15s-20s
| 7
| 1680-1260
| 13440-10080
|
4 | Solid Without logo Brick
| 240 × 115 × 70 | 15s-20s | 12
| 2880-2160
| 23040-17240 |
5 | Solid Brick
| 240 × 115 × 70 | 15s-20s
| 20 | 4800-3600 | 38400-28800 |
6 | Pevar Block | 220 × 110 × 80 | 15s-20s | 12 | 2880-2160 | 23040-17280
|
7 | Multiple Holes | 240 × 115 × 70 |
15s-20s | 12 | 2880-2160 | 23040-17280 |
8 | I Shape Paver | 200 × 163 × 60 | 15s-20s | 12
| 2880-2160 | 23040-17280 |
9 | Road Tiles
| 250 × 250 × 60
| 15s-20s
| 6 | 1440-1080
| 11520-8640
|
10 | Carb Stone | 500 × 150 × 360 | 20s | 2 | 480-360 | 3840-2880 |
